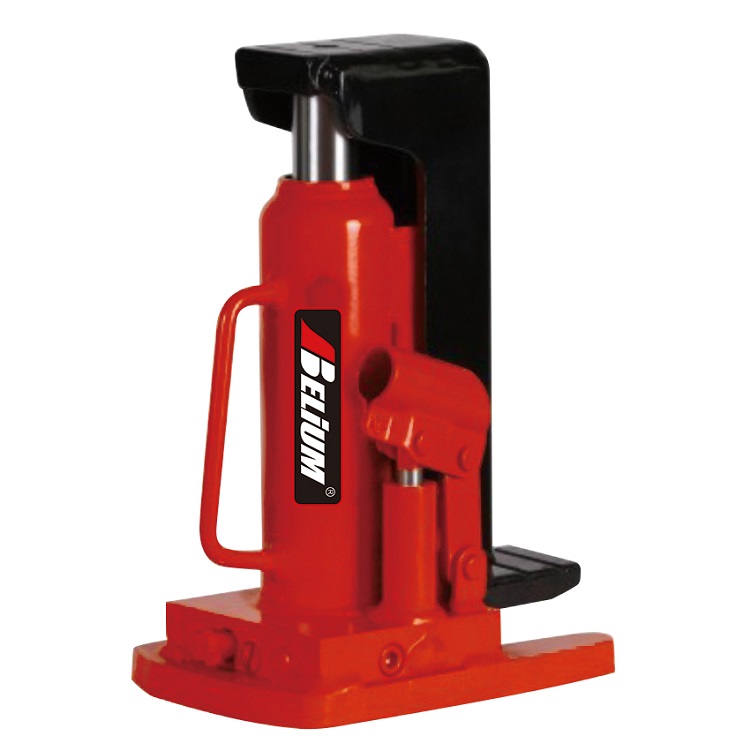

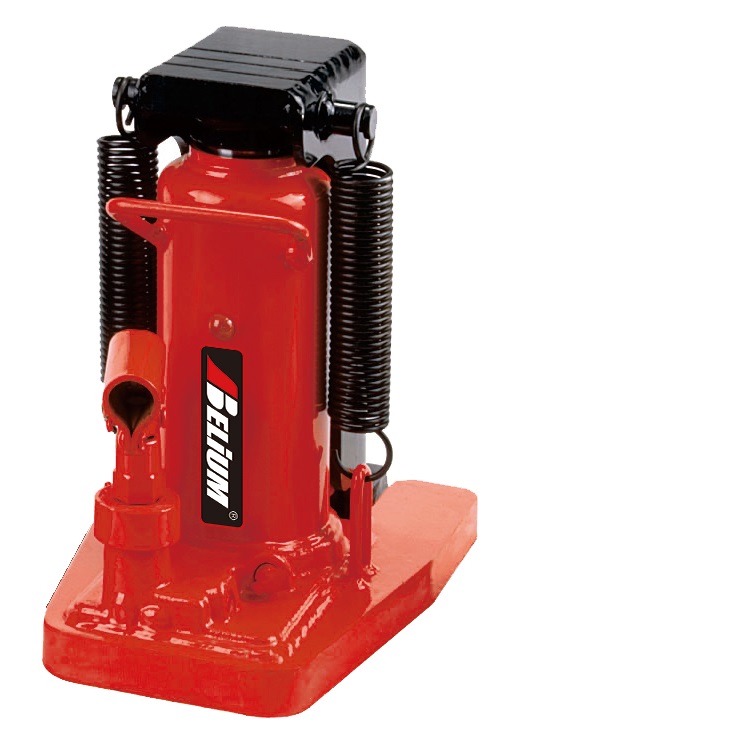

BMT-10 SERIES TOE JACK ECONOMICAL

CAPACITY: 2T, 5T, 10T, 15T, 25T

FEATURES AND BENEFITS:
  • 1. Complies with ANSI/ASME B30.1, CE/GS standards.
  • 2. Designed for lifting loads with very low minimum clearance (foot) or high clearance (head).
  • 3. Can be used in confined spaces.
  • 4. Built in safety valve for overload protection.
  • 5. Features spring assisted return and over travel protection on 5 and 10 ton models.
  • 6. Forged base and cylinder to assure strength.
BMT-10 SERIES TOE JACK ECONOMICAL
BMT-10 SERIES TOE JACK ECONOMICAL

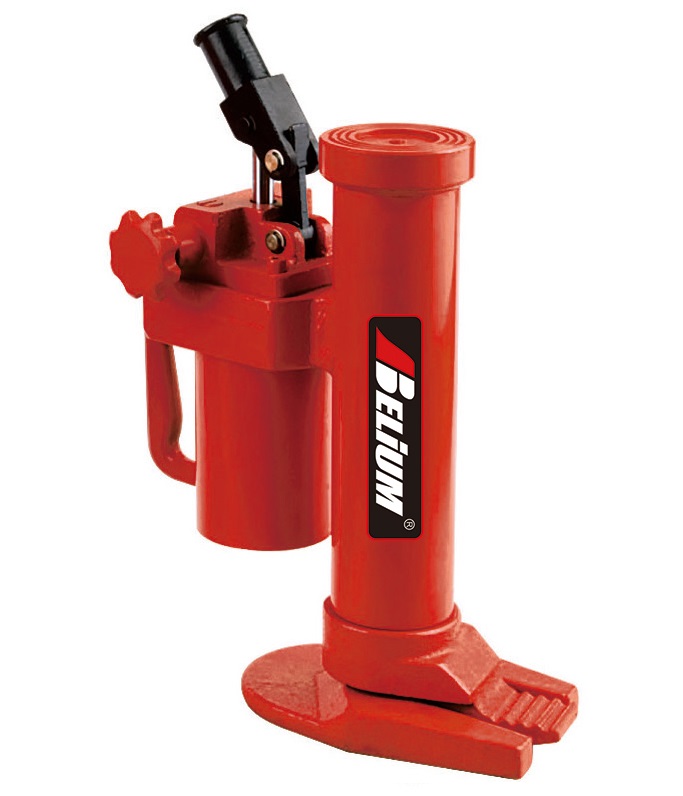

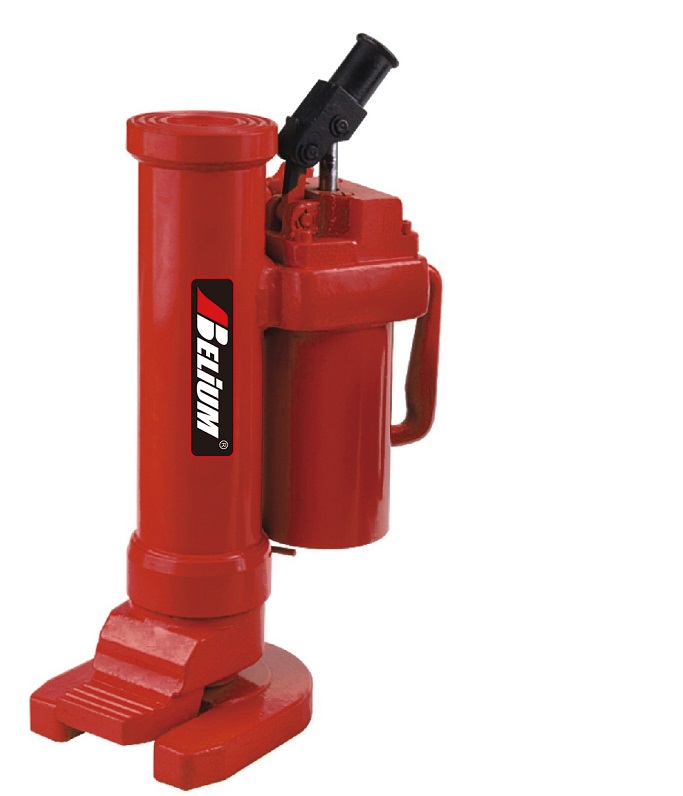

BMT-20 SERIES INDUSTRIAL TOE JACK

CAPACITY：5T, 10T, 25T

  • 1. Complies with ANSI/ASME B30.1, CE/GS standards.
  • 2. Compact and stable construction.
  • 3. Housing revolves 360°.
  • 4. Lowering speed can be accurately adjusted.
  • 5. Safety valve for overload protection.
BMT-20 SERIES TOE JACK ECONOMICAL
BMT-20 SERIES TOE JACK ECONOMICAL
Model Capacity Minimum Height Maximum Height Weight
Toe Head Toe Head Toe Head
ton ton mm mm mm mm kg
BMT-102 2 3 16 238 128 349 8
BMT-105 5 6 22 298 141 409 24
BMT-110 10 14 28 333 173 460 38
BMT-115 15 30 32 345 185 500 48
BMT-125 20 50 40 390 215 530 75
BMT-205 5 - 25 368 230 572 25
BMT-210 10 - 30 420 260 650 35
BMT-225 25 - 58 505 272 720 102
